Manual

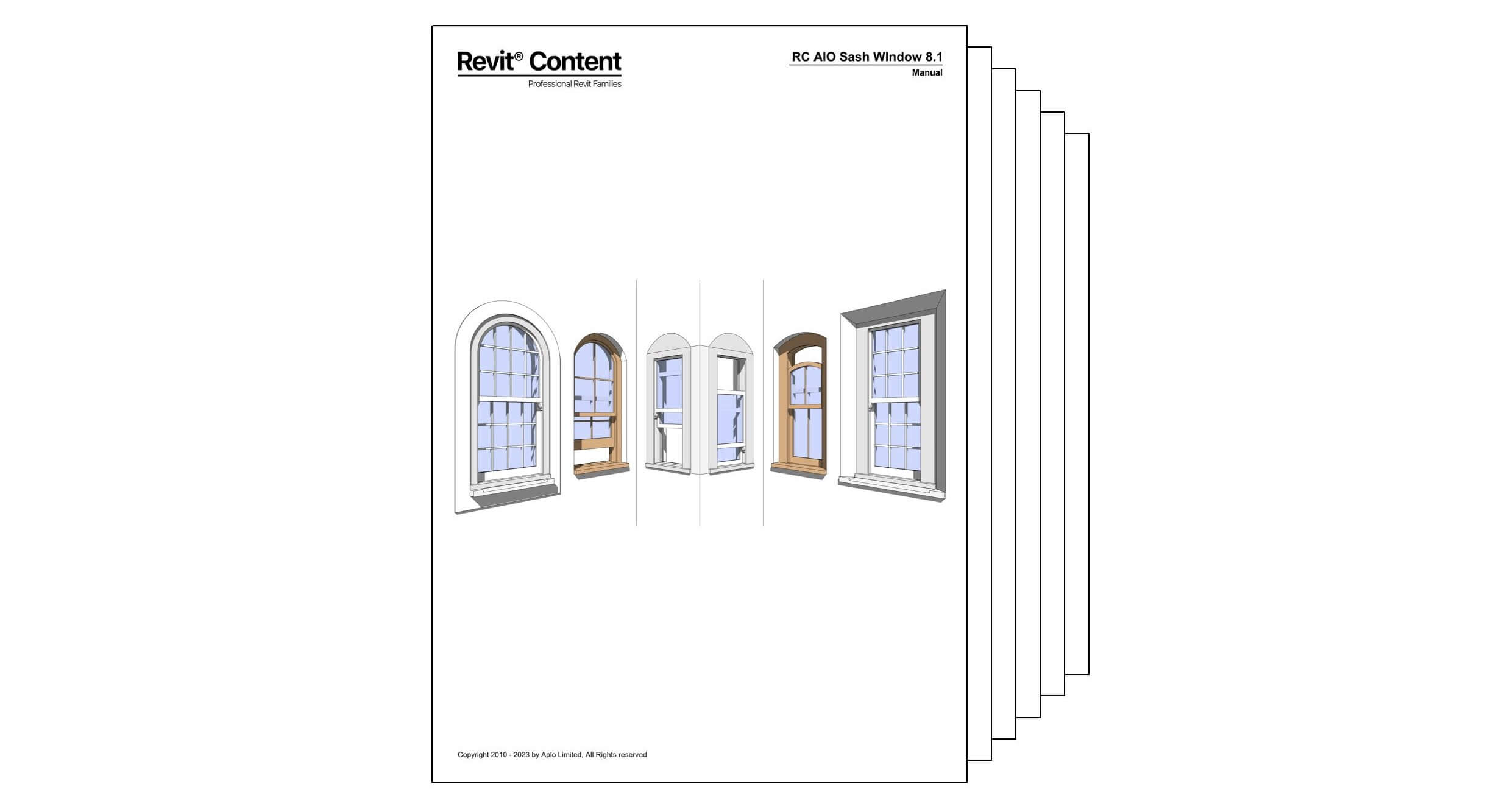

With this latest version we also release a complete new PDF manual, including a full list of parameters and more detailed illustrations that greatly simplify the use of the family.
Shared Parameters
Added parameters:
| New | Type |
|---|---|
| .Arc Window | Yes/No |
| .Bay Frame | Yes/No |
| .Frame Depth | Length |
| .Rough Height | Length |
| .Rough Width | Length |
| .Panel Double Glazing | Yes/No |
| .Sash Panel Thickness | Length |
| .Sash Weights | Yes/No |
Fixes
Phasing

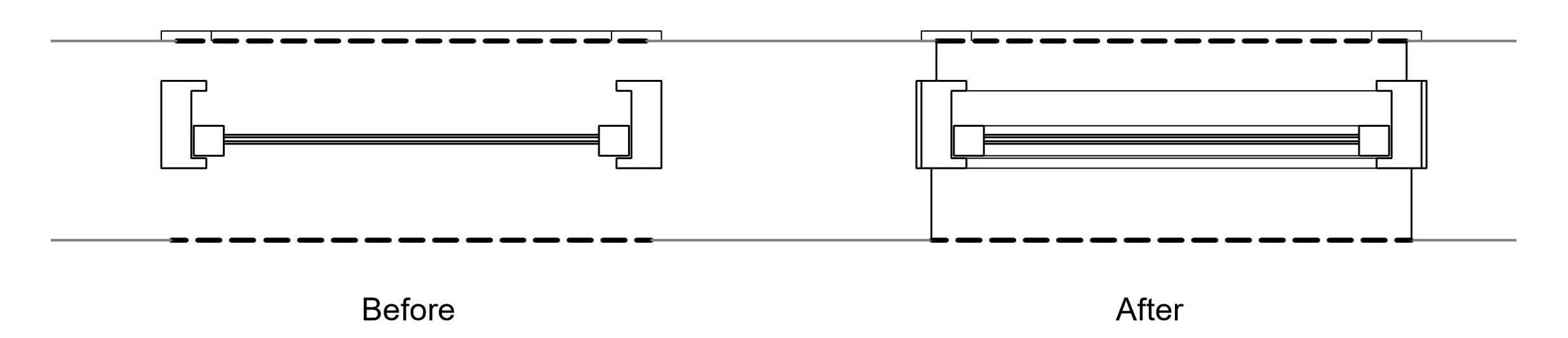

We've fixed an issue where lines for frame and pane would be hidden, when host wall was set to "Phase Created: Existing".
Note:
Instead of the simple opening tool, this family uses various voids for the wall opening, to provide features like rough distance, render offsets, and taper reveals. This causes issues in the following scenarios:
-
When placing the same window (copied instance or newly loaded) in the exact same place with different creation and demolition phases.
-

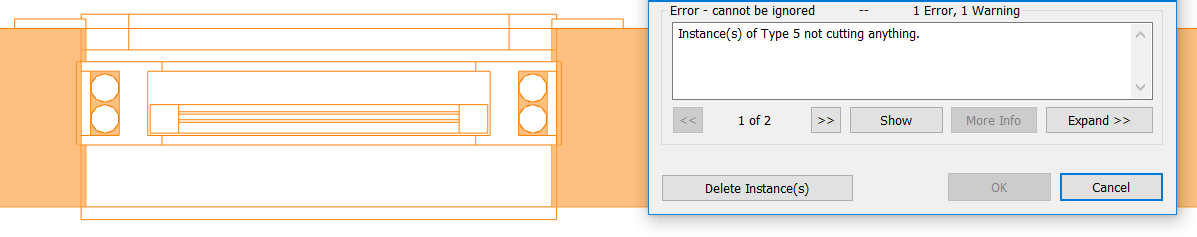

When wall opening lines are hidden and host wall has "Phase Created: Existing", and window has "Phase Created: New Construction" (usually used in renovation).
Solutions for these scenarios are now described in the new manual.
Constraint error
We've fixed an issue where panel constraints would break when arc frame filing would be activated.
Revit version
Version 8.1 supports now all Revit & Revit LT versions from 2020.
