All-in-One Door 2

Michael Loistl / /

update

We are super excited to finally release the All-in-One Door v2, which is a big release, including lots of changes and improvements, so let's get started with the biggest change first ...

Separate families

The All-in-One Door family used to be one single family (like all the other All-in-One Families we offer).

Having various frame types within one single family adds complexity and effects the performance, which is why we have split the All-in-One Door family into 4 separate families:

  • Block Frame
  • Corner Frame
  • Closure Frame
  • Closure Frame Sliding

For the new single (frame) purpose families, that means a massive performance increase of 3x.

Size Types

The new Size Type parameter allows you to switch between 5 types of how to apply the width & height dimensions.

  • Clear passage
  • Reveal
  • Leaf
  • Overall
  • Rough (structural) Opening

Shared parameters

We've added the following shared parameters:

  • .Actual Unit Width
  • .Actual Unit Height

Fixes

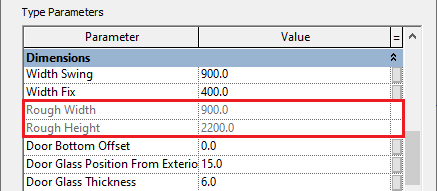

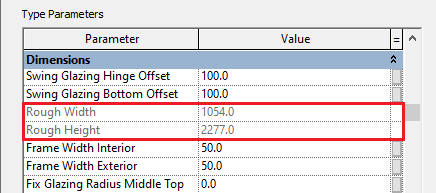

Rough Width/Height

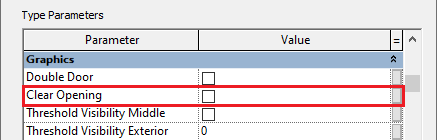

Previously, the Width and Height parameters were used for clear and rough scenarious only. The switch between those two use cases happened via the Clear Opening parameter, which has now been replaced by the new Size Type parameter. The Rough Width and Rough Height parameters are calculated parameters that can be used for door schedules.

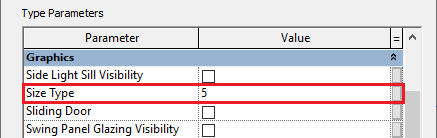

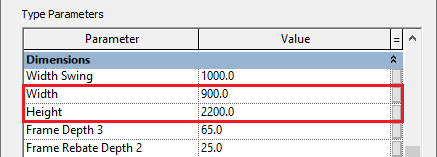

With this new Size Type parameter we've also fixed an issue that would result in a wrong value for Rough Height. Starting with this version, you can get the Width and Height values applied as rough distances by setting Size Type to 5.

Before

After

Frame

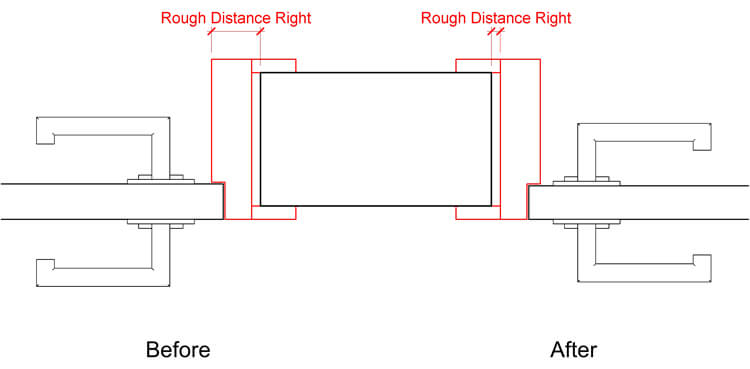

Rough Distance Top/Left/Right

We've fixed an issue for closure and corner (wood) frames where the rough distance would be applied between inner side of the frame and wall.

That issue meant that the frame width needed to be taken into account when setting Rough Distance Top, Rough Distance Left and Rough Distance Right.

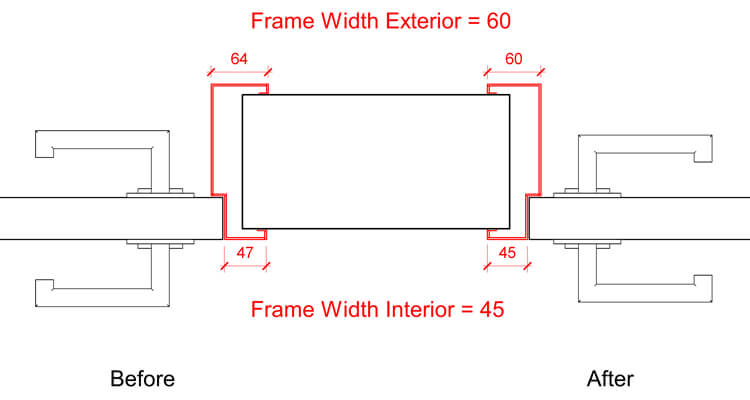

Frame Width Exterior/Interior

We've fixed an issue for closure and corner (metal) frames where the setting Frame Width Interior and Frame Width Exterior would result in wrong frame dimensions.

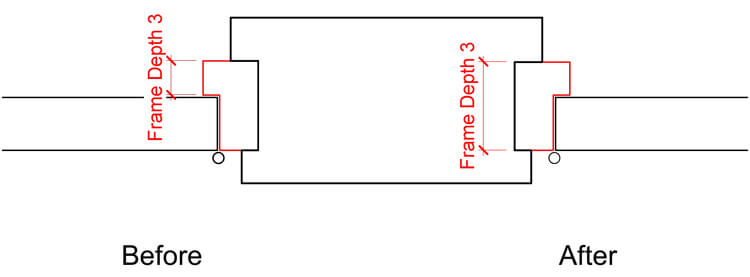

Frame Depth

We've changed the way how the Frame Depth 3 would be applied. Previously it was applied from the first or second rabbet, which required the manual calcualtion of the actual frame depth.

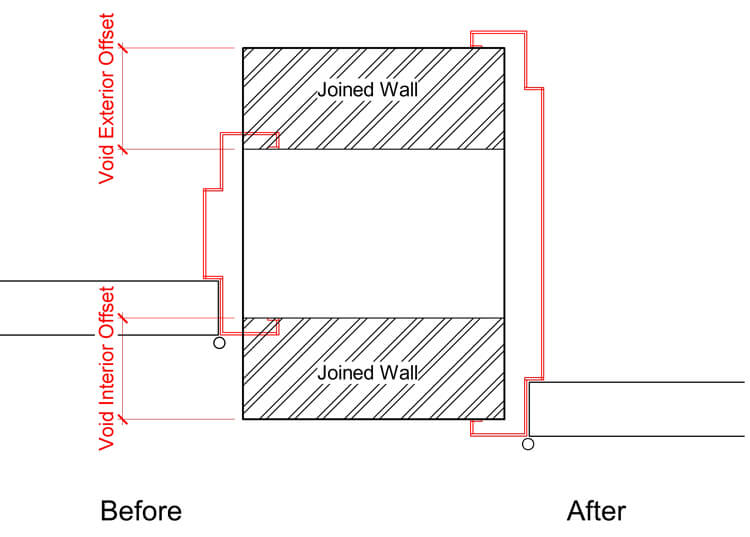

Frame Exterior/Interior Position

We've fixed an issue where the frame position would stay on the host wall when using the parameters Void Exterior Offset and Void Interior Offset with joined walls.

Panel

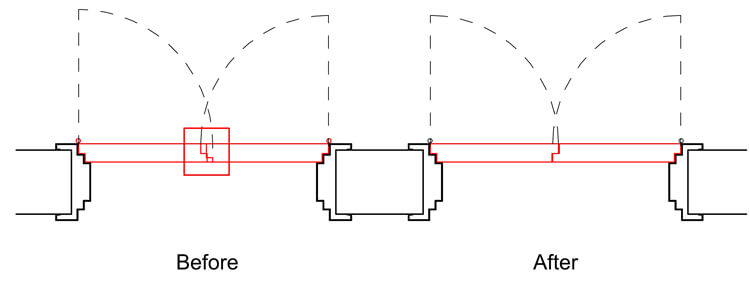

Panel Overlapping

We've fixed an issue realted to the overlapping of double door panels, when the number of rabbets was > 0.

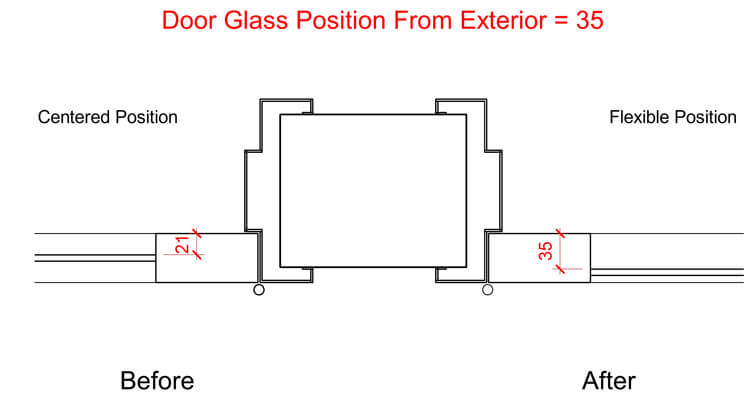

Glass

We've fixed an issue where changing the Door Glass Position From Exterior parameter would change the panel thickness.

Hinge

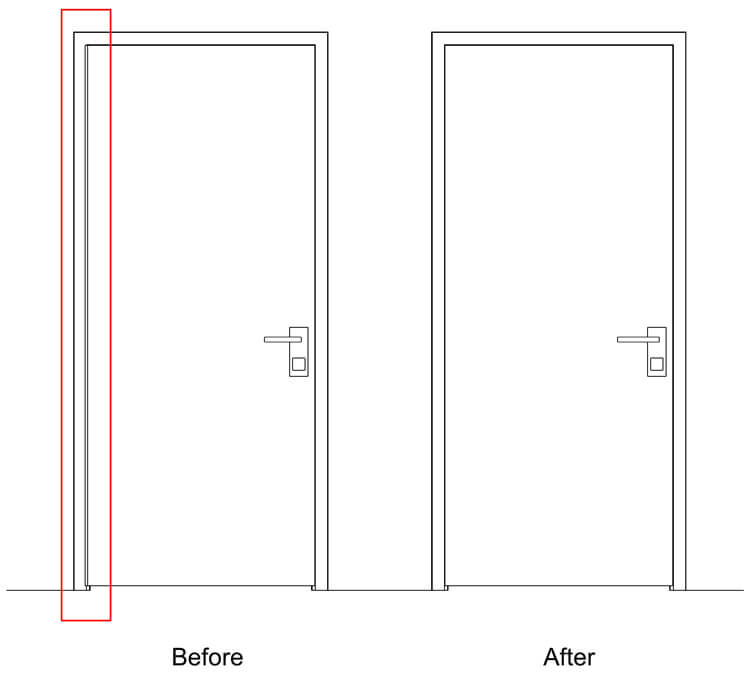

We've fixed an issue where a confusing line would be shown for the hinges in elevation. We've also changed the category for the hinge visibility from Panel to Accessories.

Handle

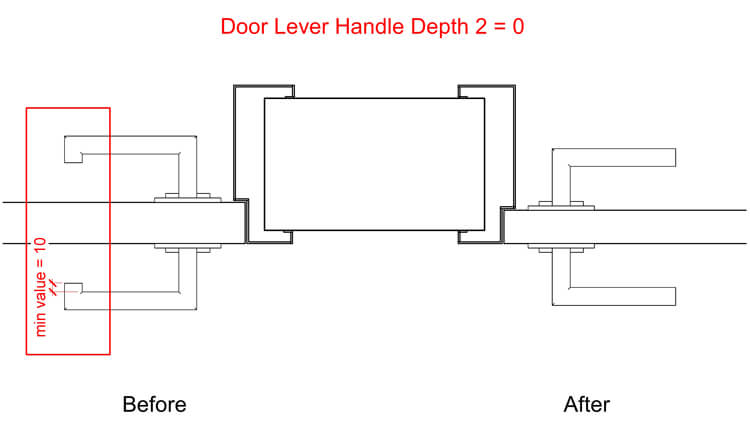

We've fixed an issue where Door Lever Handle Depth 2 couldn't be set to 0.

Threshold

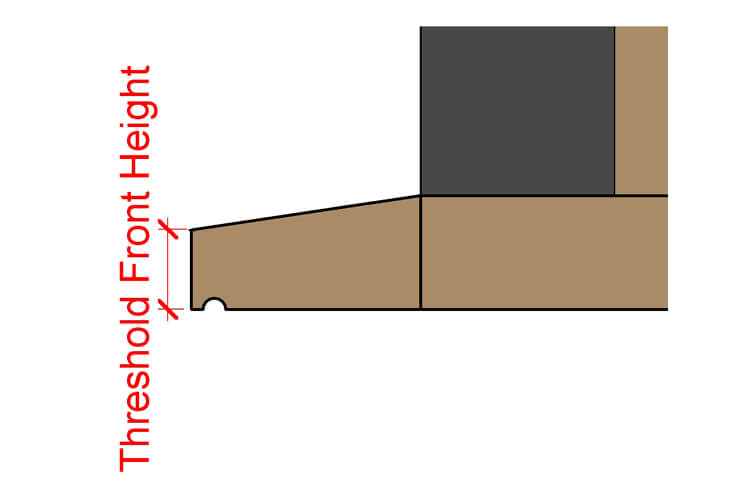

We've added the new parameter Threshold Front Height (which was previously calculated) and also fixed an issue with min/max values.

Other improvements and changes

Panel

Panel thickness

We've simplified the process of setting the panel thickness.
In particular:

  • when parameter Door Flush is enable, the panel thickness is now consistent with frame rabbet depth.
  • when parameter Door Flush is disable, the panel thickness is now consistent with Door Thickness. In this case there is no need to use the parameter Door Panel Frame Offset.

Parameters

Order

Almost all parameters (except Height and Width which are at the top of the list) are now organized in logical, alphabetical and numerical ordered groups which should greatly simplify the usage.

Renamed parameters:

AIO Door Family Separate Families Type Group
Frame Rebate Frame Rabbet Integer Type: Constraints
Fix Panel Opening% Fix Panel Opening % Integer Type: Constraints
Swing Panel Opening% Swing Panel Opening % Integer Type: Constraints
Double Rebate Double Rabbet Yes/No Type: Graphics
Kickplate Visibility Kick Plate Visibility Yes/No Type: Graphics
Door Panel Material Type: Materials and Finishes
Side Interior Sill Side Light Sill Exterior Material Type: Materials and Finishes
Side Light Sill Side Light Sill Exterior Material Type: Materials and Finishes
Threshold Exterior Sill Threshold Exterior Material Type: Materials and Finishes
Threshold Interior Sill Threshold Interior Material Type: Materials and Finishes
Door Thickness Thickness Length Type: Dimensions
Rough Distance Bottom Instance. Rough Distance Bottom Instance Length Type: Dimensions
Frame Rebate Width 1 Frame Rabbet Width 1 Length Type: Dimensions
Frame Rebate Width 2 Frame Rabbet Width 2 Length Type: Dimensions
Frame Rebate Depth 1 Frame Rabbet Depth 1 Length Type: Dimensions
Frame Rebate Depth 2 Frame Rabbet Depth 2 Length Type: Dimensions
Frame Wood Exterior Sides Offset Frame Wood Sides Offset Exterior Length Type: Dimensions
Frame Wood Interior Sides Offset Frame Wood Sides Offset Interior Length Type: Dimensions
Frame Wood Middle Exterior side Offset Frame Wood Middle Side Offset Exterior Length Type: Dimensions
Frame Wood Middle Interior side Offset Frame Wood Middle Side Offset Interior Length Type: Dimensions
Kick Plate Bottom Offset Kick Plate Offset Bottom Length Type: Dimensions
Middle Rail Bottom Offset Middle Rail Offset Bottom Length Type: Dimensions
Middle Rail Hinge Side Offset Middle Rail Offset Hinge Side Length Type: Dimensions
Middle Rail Middle Side Offset Middle Rail Offset Middle Side Length Type: Dimensions
Middle Rail Top Offset Middle Rail Offset Top Length Type: Dimensions
Render Wrap Exterior Offset Render Wrap Offset Exterior Length Type: Dimensions
Render Wrap Interior Offset Render Wrap Offset Interior Length Type: Dimensions
Swing Glazing Bottom Offset Swing Glazing Offset Bottom Length Type: Dimensions
Swing Glazing Hinge Offset Swing Glazing Offset Hinge Length Type: Dimensions
Swing Glazing Middle Offset Swing Glazing Offset Middle Length Type: Dimensions
Swing Glazing Top Offset Swing Glazing Offset Top Length Type: Dimensions
.Frame Rebate .Frame Rabbet Integer Type: Analysis Results

Removed parameters:

Parameter Reason
Clear Opening using Size Type = 1 Instead
Panel Dimensions Auto using Size Type = 3 Instead
Door Thickness Flush Frame auto calculated when use parameter Swing Panel Flip or Fix Panel Flip Instead
Door Panel Frame Offset optimization of control on panel thickness
Door Handle 2 unused parameter
Door Thickness Calc unused parameter

Revit version

Version 2 supports now all Revit & Revit LT versions from 2018.
