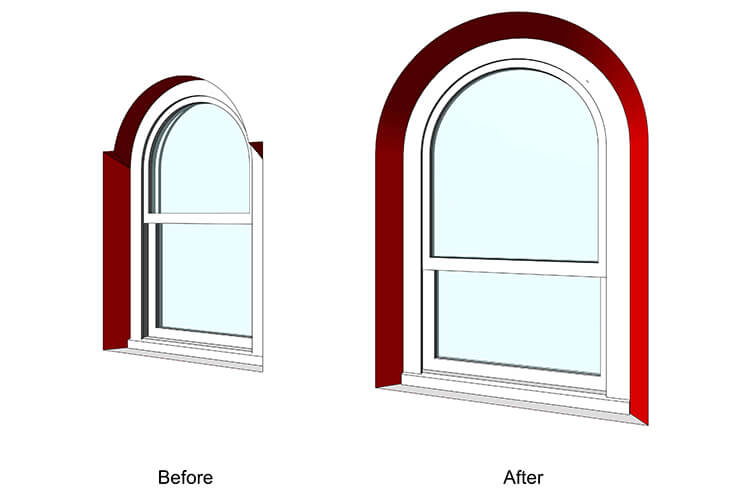

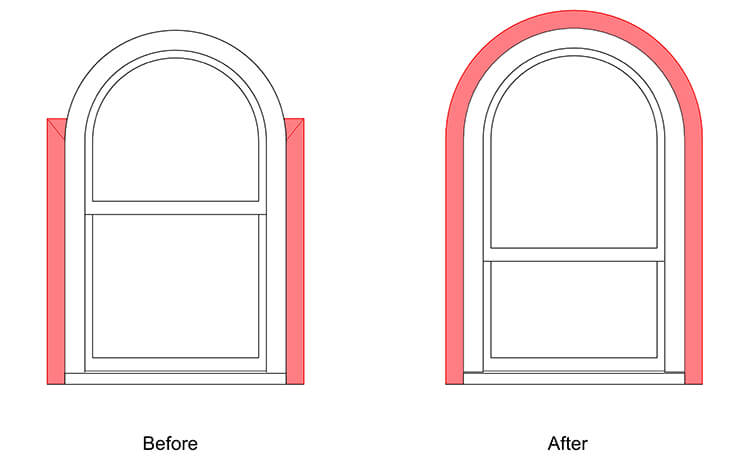

Top Arc Taper Reveal
We've added support for tapered, arched head reveals. In previous versions, the tapered reveal was handled as straight head even when the window head was arched.
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/57a244022b-1594999634/blog-v7-revit-all-in-one-sash-window-family-fix-top-taper-reveal-arc-3d.jpg)
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/8e0df3f8f5-1594999634/blog-v7-revit-all-in-one-sash-window-family-fix-top-taper-reveal-arc-elevation.jpg)

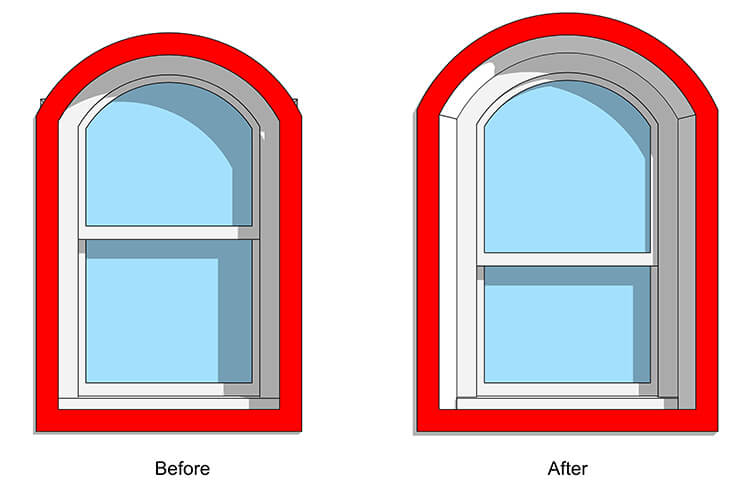

Tapered Reveal with Trim
We've fixed an issue where the trim wouldn't take the offset of tapered reveals into account. Trims are now positioned correctly with and without tapered reveals / arched heads.
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/de8f42398e-1594999635/blog-v7-revit-all-in-one-sash-window-family-fix-trim.jpg)

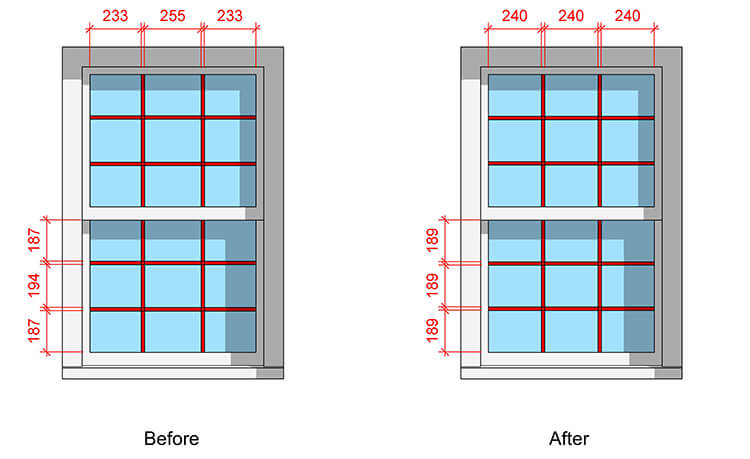

Glazing Bars
We've fixed an issue where glazing bars weren't positioned with equal spacing.
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/a1d4f25a48-1594999633/blog-v7-revit-all-in-one-sash-window-family-fix-glazing-bars-positioning-elevation.jpg)

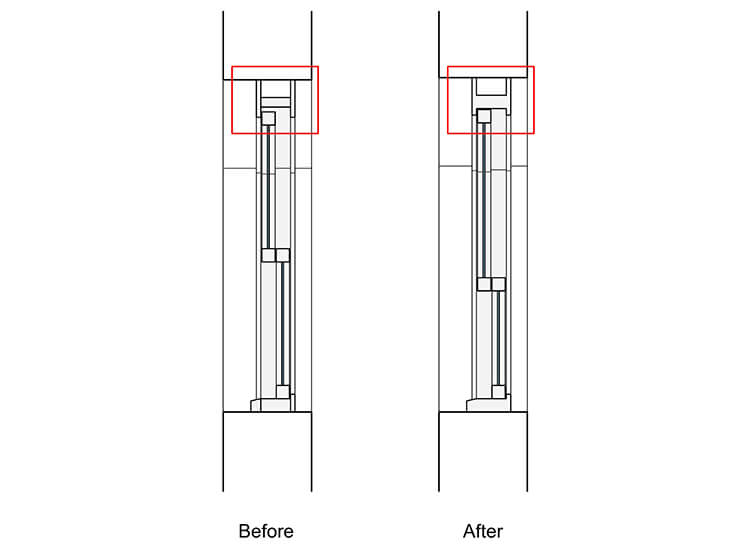

Main Frame Arc in Section
We've fixed an issue where the arched main frame wouldn't show corretcly in section when Sash Weights Visibility is ON.
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/fbd335655a-1594999634/blog-v7-revit-all-in-one-sash-window-family-fix-main-frame-arc.jpg)

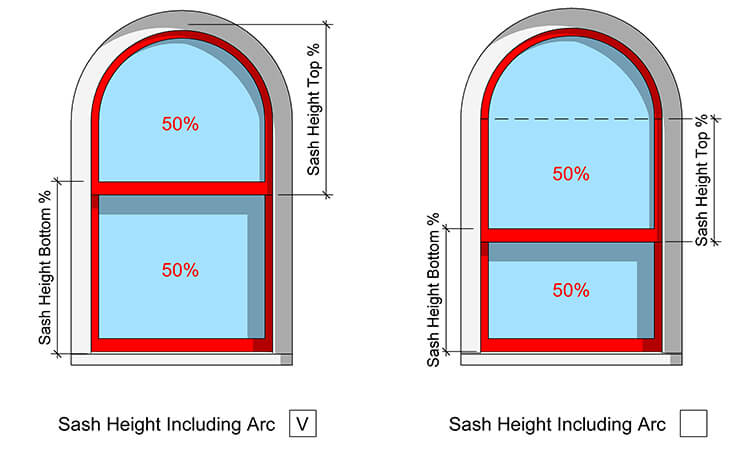

Fix Sash Top/Bottom Height
We've added a new parameter Sash Height Including Arc
which allows you to control if Sash Height Bottom %
and Sash Height Top %
are related to the straight frame height or the total window height including the arc.
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/fc11878696-1594999632/blog-v7-revit-all-in-one-sash-window-family-add-mode-sash-height-elevation.jpg)

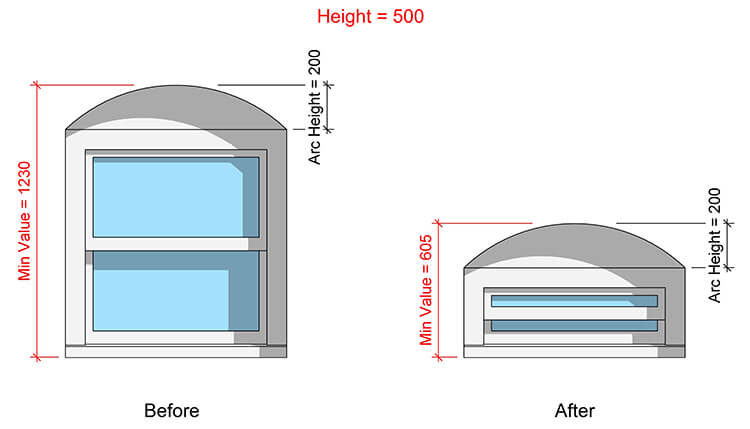

Window height limit
We've dramatically redecued the window height limit for arched windows.
![](https://revit-content.com/media/pages/blog/all-in-one-sash-window-7/fa37616d31-1594999635/blog-v7-revit-all-in-one-sash-window-family-fix-window-height-limit.jpg)
Overall optimizations
Additional to the mentioned fixes and improvements, this update includes also a series of optimizations like:
- reduced usage of voids, replaced with single extrusions (like Trim, Main Frame, Arc Frame Filling, Sash Pane)
- reduced number of geometries
- removed paramters (due to optimized geometries)
- named reference planes
Revit version
Version 7 supports now all Revit & Revit LT versions from 2018.
This is a free update for all customers who purchased the All-in-One Sash Window as single family or as part of a bundle.
