The Door System
The All-in-One Revit Door Family is the best way to create Doors in your Revit Project. The built in fully parametric Frame system lets you create any Door System you need for your Revit Project. You can setup a standard single Door, with all Details, Materials and Functions you require and then just duplicate it to different Door Types and change with just one click to a double Door, or from a Swing Door to a Sliding Door. This is the first time that you can get all the Doors you need for your Revit project with just a few clicks. They all follow exactly to your requirements, and you don’t just get the Doors you need but you use just one Revit Family and keep your Revit Project efficient and your Revit Door Content easy to maintain.

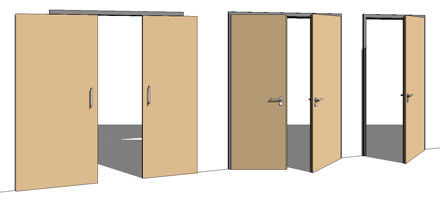

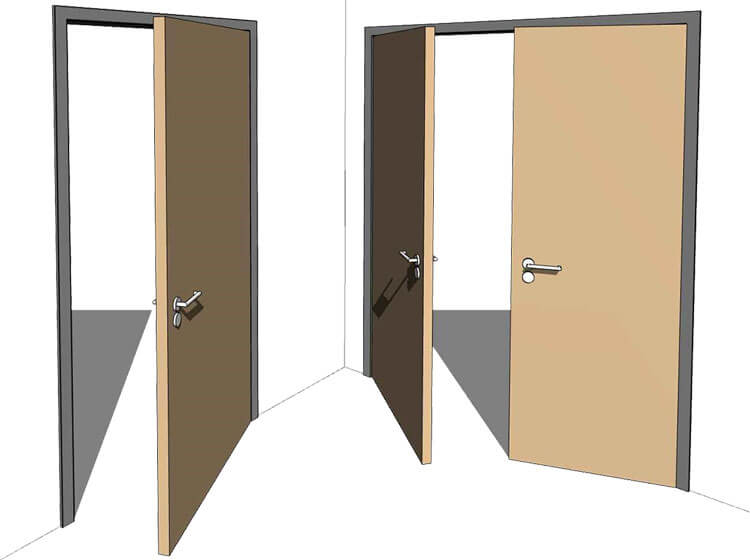

The Single Door gives you all the great features with either one or even two panels as you might need it for hotel or office Projects where noise reduction is a subject. It shows the exact space, the Door Panel needs to swing taking all the detail information from the rebates, Frame Type as well as Hinge Position into account.
The Double Door gives you still the same great features like the Single Door but it lets you setup two individual Door sizes which fit perfectly together taking the Frame Rebate into account.
The Swing Door Feature gives you full control to which angle each Door Panel opens, and even the pivot point of the Hinge can be adjusted to get the real Door Panel Swing. Another great feature is that you can control the 2D and 3D Angle of the Door Panels separately to show for example the Door Panel closed in the 3D view and in plan view the Symbol Lines showing the Door Panels open.

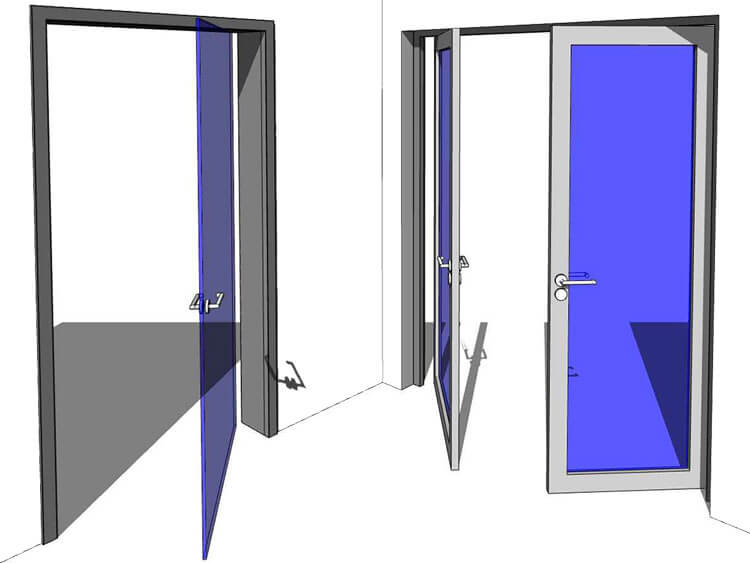

The Pivot Door Feature gives you the possibility to switch your Door from a normal Swing Door to a Pivot Door regardless of its Frame- or Panel Settings. This Switch can be done with just one Parameter, all the transformation to the Frame and Panel as well as Hinge Position is done automatically for you.

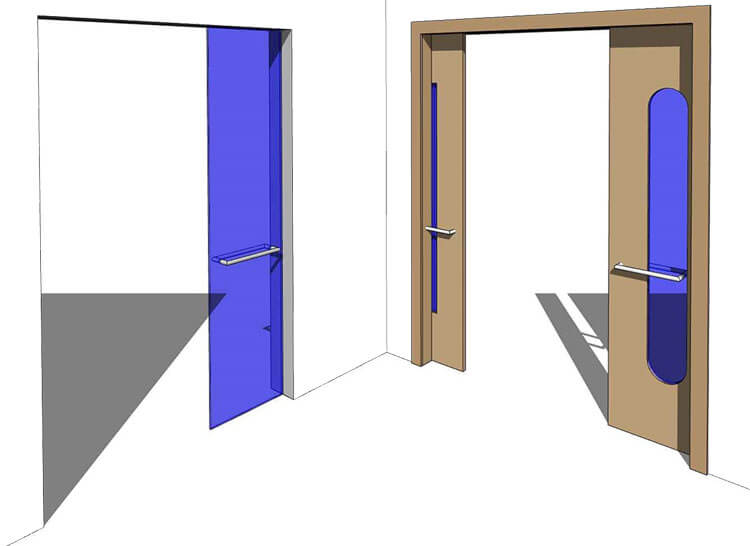

The Sliding Door Feature gives you the possibility to switch your Door from a Swing Door to a Sliding Door regardless of its Frame- or Panel Settings. This Switch can be done with just one Parameter, all the transformation to the Frame and Panel as well as Hinge Position is done automatically for you.
Transom Window / Fanlight

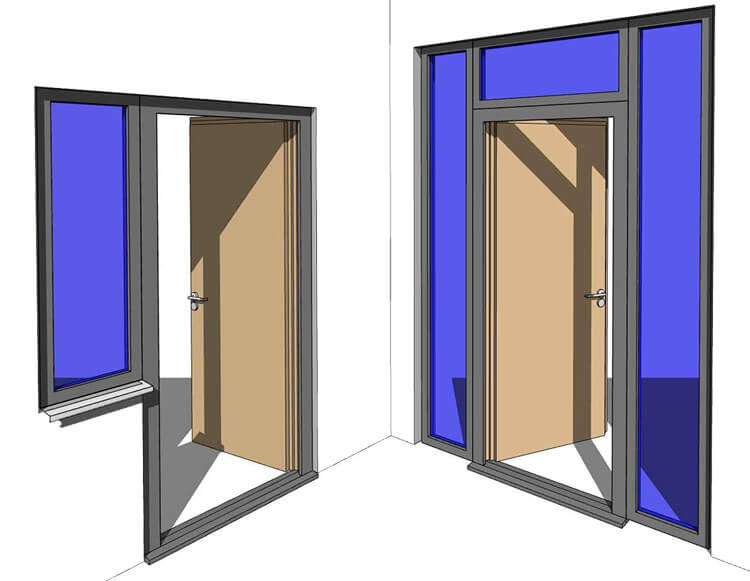

This All-in-One Revit Door Family is not just a normal Single or Double Door, but can also be adjusted to have special Frames. The Transom Window is one of this special Frame settings and lets you add a Transom Window or Fanlight on top of the Door Frame that you set up. To activate the Transom Window it is necessary to change one Parameter, and all the transformation of the Wall opening as well as the Frame System is done automatically for you.
The Side Lights are another amazing way to create a special frames as they let you control each Side separate. The Sidelights can be adjusted in their width and even a Sill can be activated and be adjusted in its height.
The Wall Opening
The Wall opening doesn’t get that much attention with normal Revit Door Families as you might have experienced. Not so with this All-in-One Revit Door Family as it lets you have full control over the Wall Opening with many adjustable parameters to get the Opening, the Render wrapping, Reveal, etc. exactly how you require it for your specific Revit Project.

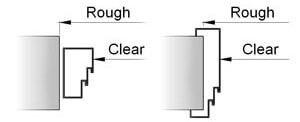

The correct Rough Opening is the basic functionality that you await from a good Revit Door Family. If the Rough Opening is 100% correct, you can trust to use it for your construction as well as detail documentation drawings. The All-in-One Revit Door Family gives you the possibility to setup specific Rough Distances between your Frame and the actual opening.

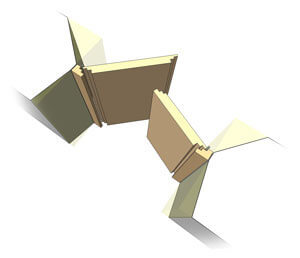

Many Projects are revitalizing existing Buildings and therefore Doors have to be placed into existing walls that often have tapered reveals. The All-in-One Revit Door Family helps you with its fully adjustable Reveals to exactly show each reveal as it is existing in the specific structure.

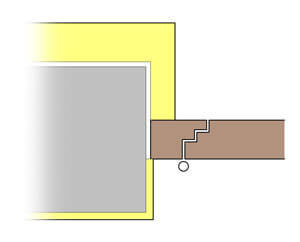

You can setup various Wrapping options within the System Wall Family, but this is just the half way to get the exact detail you really need. It is important to be able to control how much the render overlaps your frame separate for interior as well as exterior and the All-in-One Revit Door Family lets you do this in a very convenient way.
Cut joined Wall

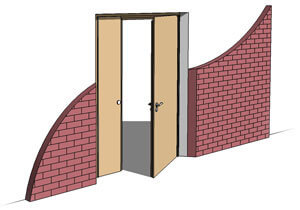

The Wall System family gives you great possibilities to setup the exact Wall Layers you need. But sometimes it is necessary to add an additional Wall (e.g. Dry-Lining) and join it with the original Wall. The All-in-One Revit Door Family supports those additionally joined walls with its Wall opening and it applies all your settings for Rough Distance, Tapered Reveals as well as Render Offset seamless to the original Wall as well as any additional joined Wall.
The Frame System
There’s nothing like the Frame System in the All-in-One Revit Door Family. With just a few parameters, it lets you adjust the Door Frame to various Frame Types, with various Rebates and either as Wood or as Metal Profile Frame in a way you never could before. The amazing thing is that you can change all this at any configuration - So you can for example setup a specific Door with specific Rebates, a specific Door Panel, Glazing and various Accessories and then just duplicate it to a Corner Frame Type, a Closure Frame Type or a Block Frame. It’s so simple and efficient ...

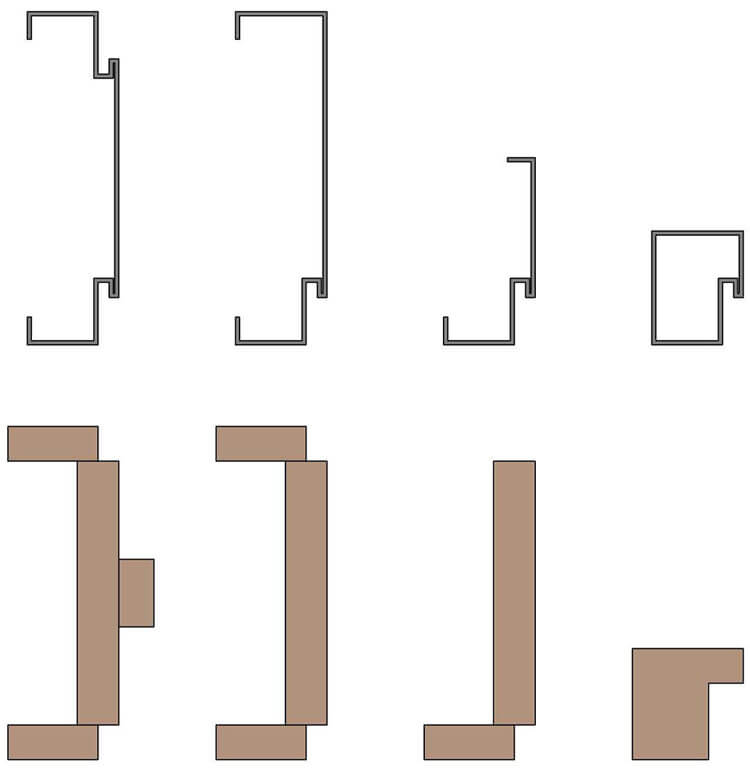

If you wanted to add correct information to your Building Information Model, finding the right Revit Door Family has always been a challenge. Even more difficult was then to get this specific Revit Door Family with the right Frame type. This hassle is now over as the All-in-One Revit Door Family gives you the full control over your Door Frame Type. You can change the Frame Type between a Closure Frame, Corner Frame or a Block Frame, just with one click and the advanced parametric functionality of this Revit Door Family does the rest for you - it adjusts the Door Panel, the Wall opening, etc. and in case that the Door Frame doesn’t work with other settings like Transom Window, Side Lights, Sliding Door, etc. it prevents you from an error and is setting the appropriate Frame type automatically for you.
Additional to the Frame Type the Frame can easily be changed between a Profile and Wood Frame. This Change can also be done with just one single Parameter and all your settings for Frame Type, Rebates, etc. are automatically adopted to fit to the chosen Frame Material by the All-in-One Revit Door Family.

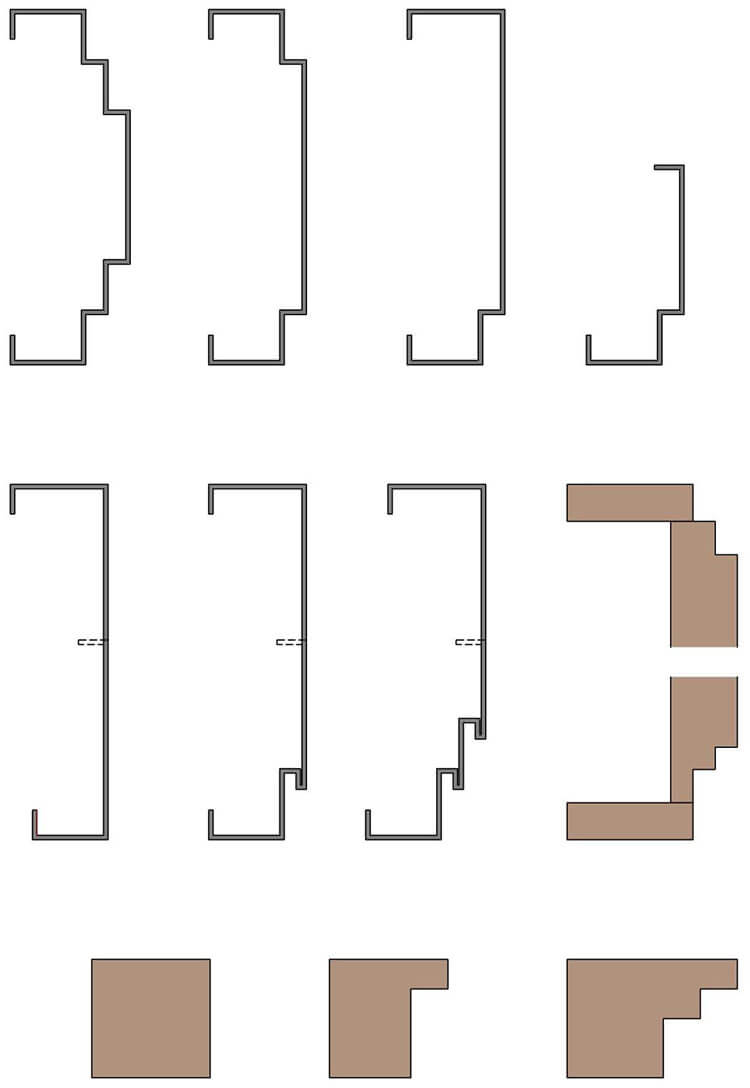

Having the right Door Frame is already amazing, but imagine, that you could change even the number of rebates within this Frame - The All-in-One Revit Door Family lets you do this with just one simple parameter and again it does all the work around adjusting the rebates (e.g. adjusting the Door panel, Wall opening, etc.) for you.
From Version 1.4 the Rebates are now more adjustable as you can have the option to activate or deactivate the Grooves. It is now possible to setup for example a US or UK Standard Steel Frame.

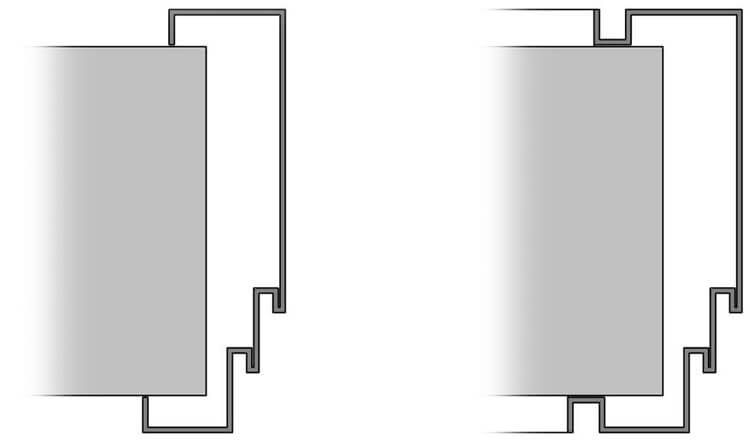

There are some Metal Frames that have either a single Fold or a Shadow Gap for the Render. The All-in-One Revit Door Family lets you setup a fully adjustable single fold, shadow gap or even no fold for the Closure Frame as well as the Corner Frame.
From Version 1.4 the Fold can now also be adjusted to have a Ancher. It is now possible to setup for example a US or UK Standard Steel Frame.
The Panel System
With the Panel System of the All-in-One Revit Door Family, you can do much more than just see them as Symbol line in your Plan view or as a 3D Door Panel in your Rendering. You have various ways to show your Door Panel in the plan view in a detail and accuracy you haven’t seen before. The Panel follows automatically to your Frame setup, and with just one click you can even switch between Flush and not Flush or create an glazing within your Door Panel.

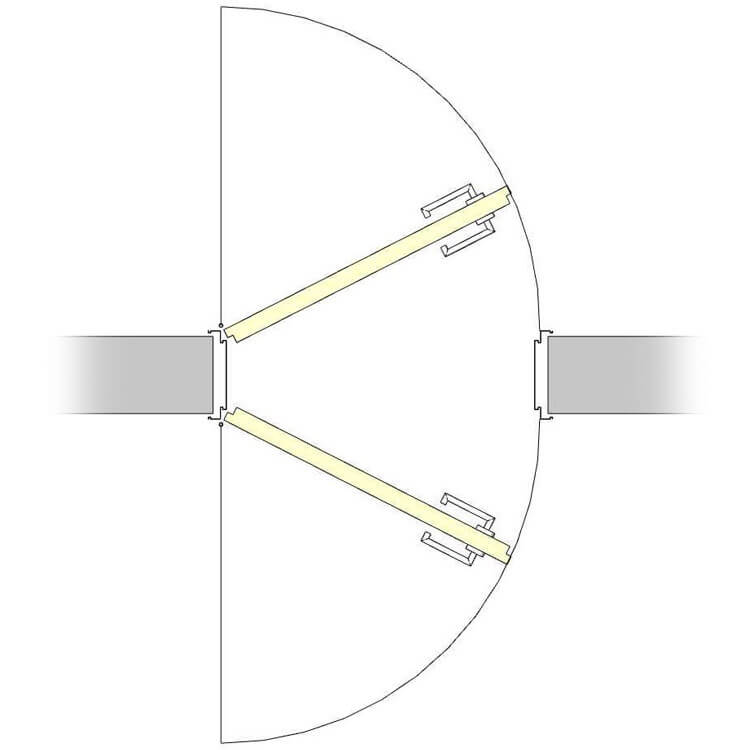

The All-in-One Revit Door Family Panel System lets you setup a Double Panel Door for the Single and Double Swing Door as you might need it for Hotel or Office Projects where noise reduction is a subject. The Panel System lets you do this adjustment with just one click and all the adjustment of the Frame, Rebates, etc. is done for you automatically by the advanced parametric Revit Door Family.
Double Egress Door

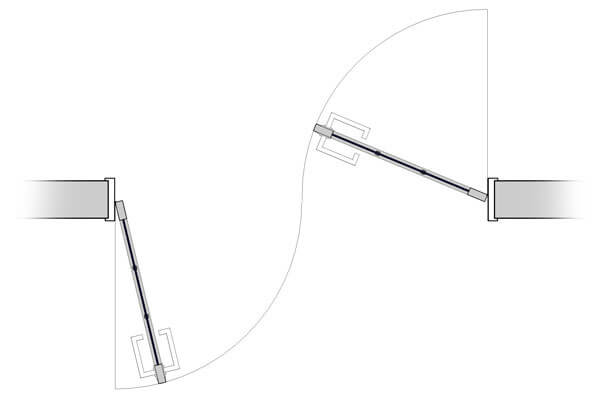

The All-in-One Revit Door Family Panel System lets you setup a Double Egress Door by changing just one single parameter. All adjustments to the frame, symbol lines, etc. are done for you automatically.
Flush / Not Flush

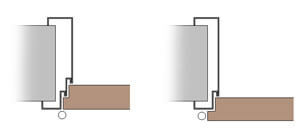

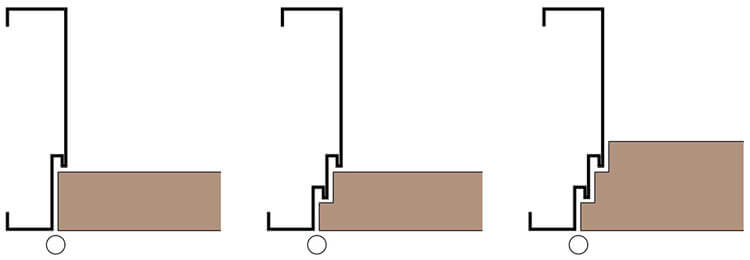

The Door Panel can be either Flush with the Frame or not and together with the ability to control the number of rebates, this is a very powerful feature that the All-in-One Revit Door Family lets you change with just one click. This adjustment can be done with any Frame Type and all the necessary adjustments to the Panel are done for you automatically.
The All-in-One Revit Door Family gives massive automated functionality to the Door Panel as it follows the Frame Rebate settings fully automated, taking your settings for Flush or not Flush, Single or Double Door or even Sliding Door into account.

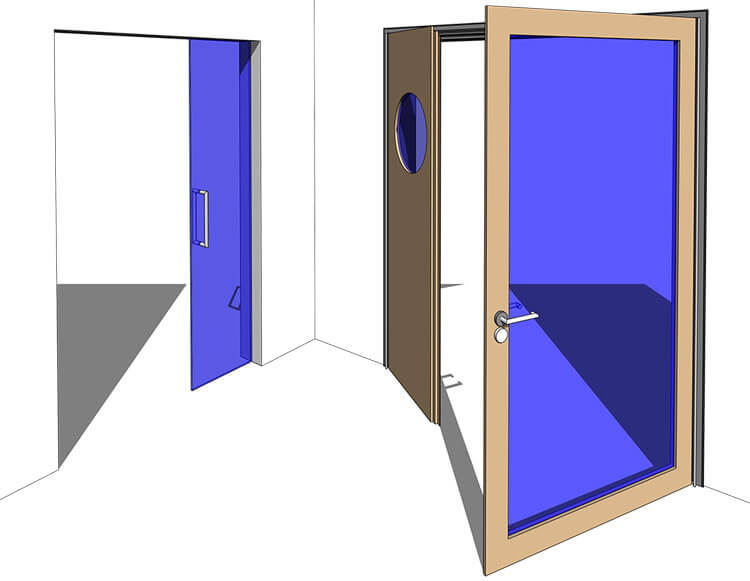

The Glazing Feature lets you activate an glazed opening in your Door Panel that can be adjusted in its size as well as location. The Corners of this Door Panel Opening can be adjusted to be either right angled or have a radius. The Door Panel even allows you to adjust it to a full Glass Panel.

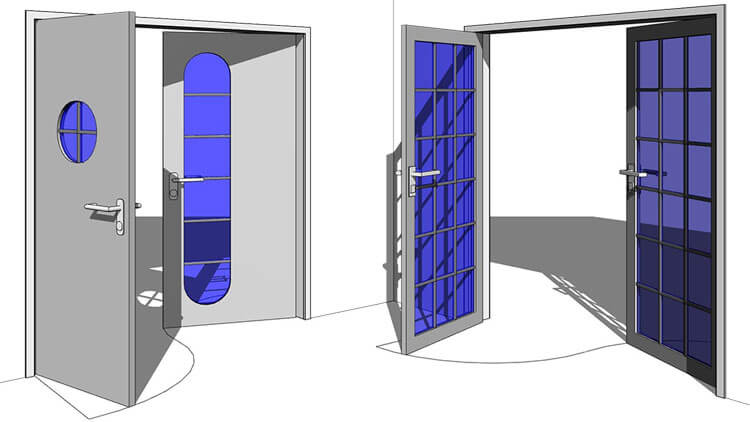

The Glazing Bar Feature lets you add a customised number of glazing bars (mullions) to each door panel (leaf). The number of glazing bars can be adjusted separately for each panel (leaf).

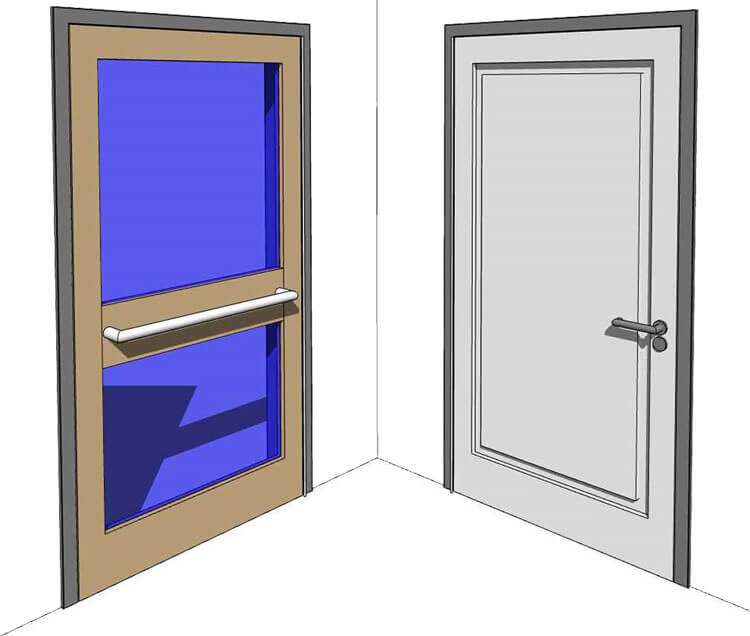

The new Middle Rail Feature lets you setup a Middle Rail Profile on the Door Panel which can also be adjusted to a profiled Panel Door.

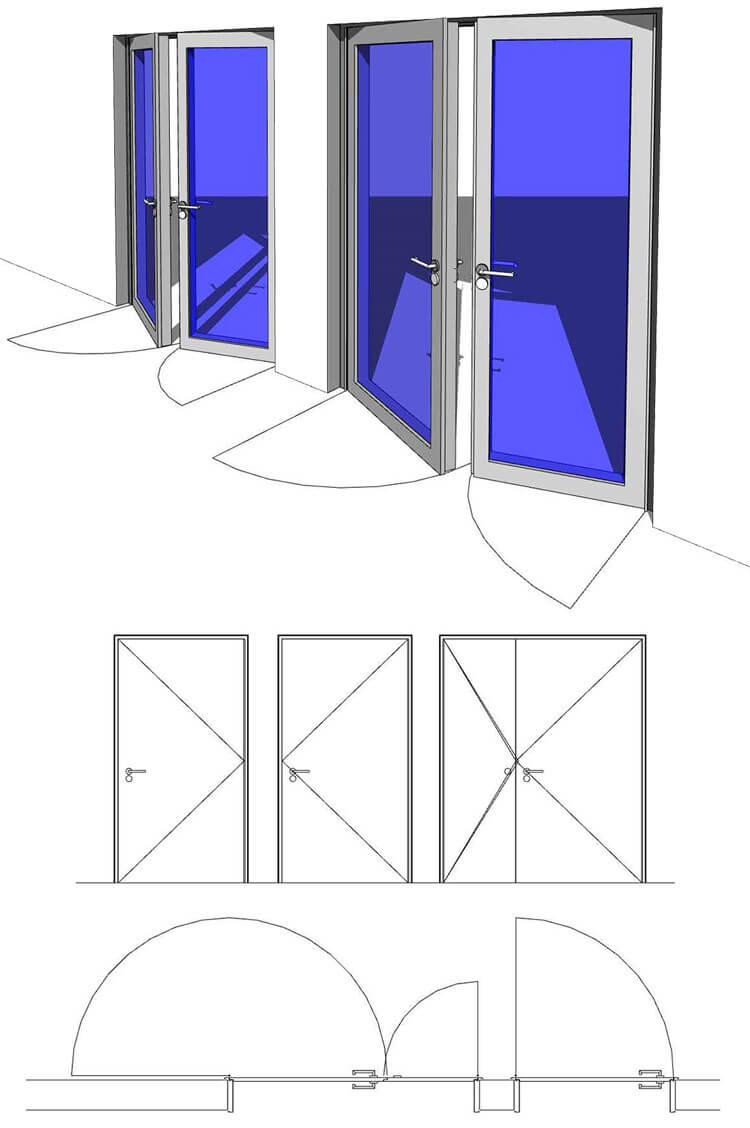

The All-in-One Revit Door Family is the only Revit Door Family available that shows the Symbol lines of the Door Panel correct in reference to the selected Frame Type, Rebates, Single or Double Door, etc. that gives you the guarantee to see the real space required by the Door Panel to swing. Another great Feature is that the angle of the Panel Swing can be controlled with an instance Parameter separate from the opening Angle of the 3D Door Panel. As our All-in-One Revit Families are in use in more then 100 countries worldwide the Symbol lines can even be adjusted to your local standards.
From Version 1.4 the Symbol lines can be shown in any 3D view additionally to the Plan view and Elevation.

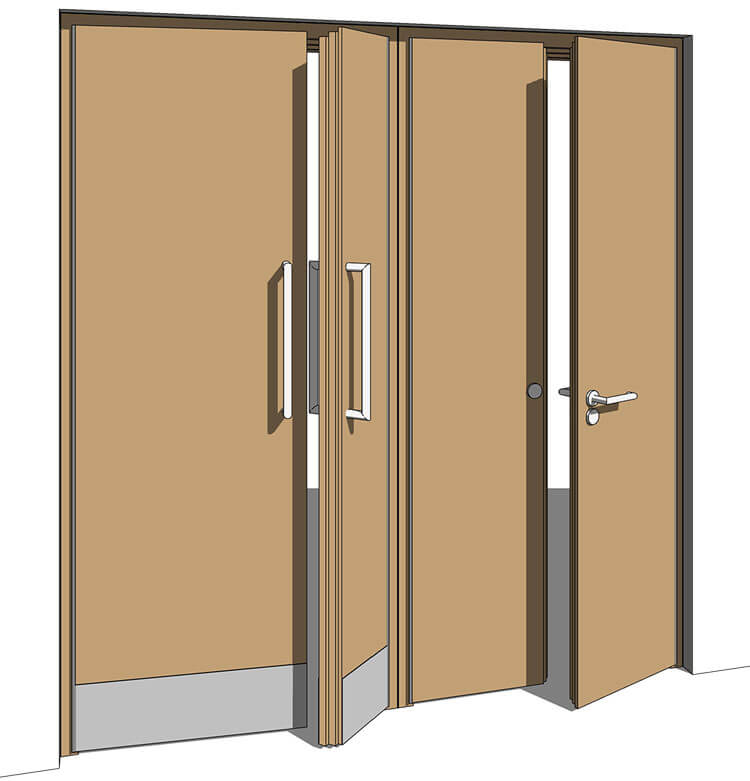

There is even more Detail on the Accessories with a fully parametric Door Handle, that can be adjusted to a Emergency Bar, Lever handle, Pull Handle, Push Plate or just a Knob handle. There are also adjustable Kick Plates and more.
The Door Handle within the All-in-One Revit Door Family is fully parametric and can simply be switched between various Handle Types with just one single Parameter and this separate for each Door Panel.
The Lock is also fully parametric and can be shown with or without the various Handle Types.
On the Door Panel Surface of the All-in-One Revit Door Family there is a fully parametric Kick Plate that can be adjusted in its size as well as location and of corse in its material.

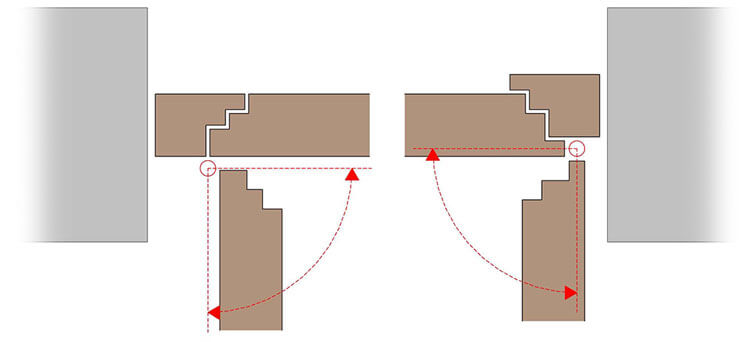

The All-in-One Revit Door Family doesn’t just show Hinges for each Door Panel in the plan view as well as in 3D View, it takes even the Role of the Hinge for the swing functionality very serious. The position as well as the size of the Hinge is fully adjustable, and the Door Panel adjusts automatically its size as well its swing radius to give you always the correct space required for the swing of the panel.

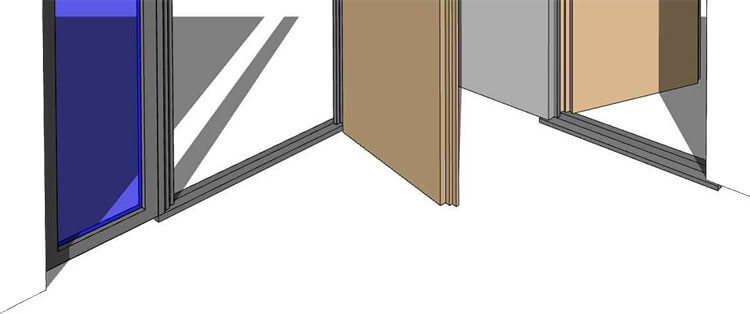

The All-in-One Revit Door Family can be used as Interior as well as Exterior Door and so can the Threshold. The Threshold is adjustable in its profile and can be switched to either interior, exterior or even both.
And finally the All-in-One Revit Door Family lets you take advantage from the Revit schedule capabilities with all its great features and details.

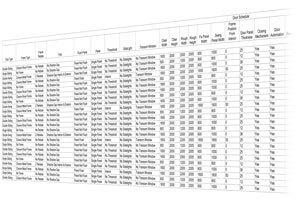

The All-in-One Revit Door Family supports the Revit schedule functionality more then any other Revit Door Family available giving you access to a long list of specially for scheduling prepared list of Parameters.
(images: revit-door-family-schedule.jpg, )
All-in-One Door Family
All purchases include:
- Family .rfa (metric/imperial) compatible with Revit & Revit LT 2014 - 2020
- Sample Project .rvt (metric/imperial)
- Type Catalog .txt (metric/imperial)
- Manual .pdf
- Free Email Support
- Free Updates
